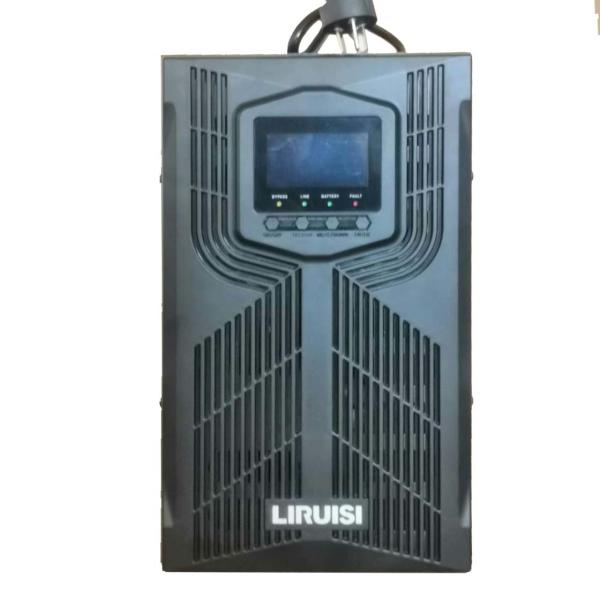

    6kVA 5.4kW Modular Uninterruptible Power Supply Tower Online High Frequency UPS

    Ask Lasest Price
    Brand Name : LIRUISI
    Model Number : E6KS
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 9999 units
    Delivery Time : 8 working days
    • Product Details
    • Company Profile

    6kVA 5.4kW Modular Uninterruptible Power Supply Tower Online High Frequency UPS

    LIRUISI High Frequency Tower Ups Uninterruptible Power Supply E6KS

    Product introduction:

    Liruisi E6KS [single in, single out] UPS is a high-end low-power online UPS product specially proposed for the needs of small power supply environment of enterprises and institutions, which can provide high openable power protection for users' departmental servers, small LANs, workstations, industrial computers, small medical equipment, and other small precision electronic instruments.


    way of working:

    Single in single out, double conversion online work order in single out operation.


    When choosing the high-frequency tower UPS uninterruptible power supply 3E20KS, the following factors need to be considered:

    Load type: Select appropriate UPS according to the actual load type, such as computer equipment, communication equipment, network equipment, etc.


    Single Input Single Output High Frequency Tower UPS System
    Product modelSingle-phase electrical input, single-phase electrical output
    E6KS
    Specifications6kVA/5.4kW
    Technical parameters
    Machine ArchitectureDual Conversion Online UPS
    Input and output phasesSingle Phase Input/Single Phase Output
    Input voltage rangeHigh voltage version HV: zero fire phase voltage: 90~300VAC / low voltage version LV: zero fire phase voltage: 55~145VAC
    Input frequency range40Hz-70Hz
    Input power factor≥0.99
    Number of output linesSingle-phase two-wire (L, N) + protected ground
    Rated voltageHV in high-voltage version: 208/220/230/240VAC/LV in low-voltage version: 110/115/120/127VAC
    Output voltage accuracy±1%
    Output frequency50/60±4Hz (phase-locked follows mains) / 50/60Hz±0.1% (fixed frequency mode)
    Output waveformPure sine wave
    Overload capacity1min@105%~125% rated load, 10s@125%~150% rated load, 0.5S@>150% rated load
    Battery Voltage/Quantity192/240VDC (external)
    Battery capacityExternal battery decision
    Charging currentStandard machine (built-in battery): 1A, long-term machine (external battery): 4A
    Tower sizeE6KS: 190 (W) * 318 (H) * 368 (D) MM
