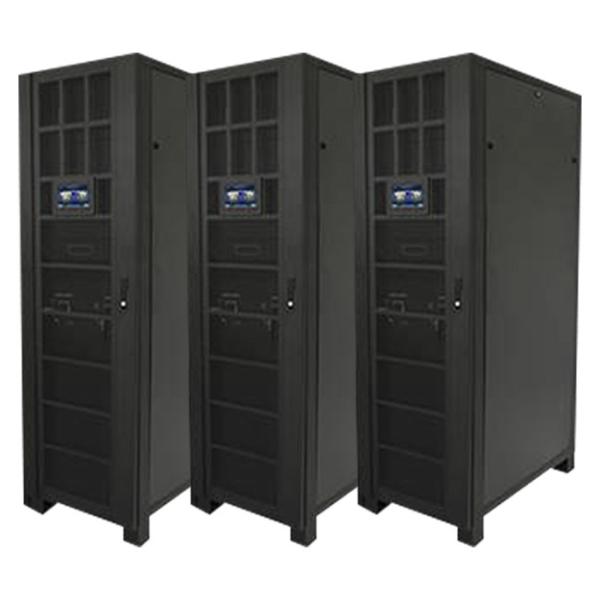

    Modular Type UPS Battery Backup High Frequency 200 KVA N Series

    Ask Lasest Price
    Brand Name : LIRUISI
    Model Number : N200KVA
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 9999 units
    Delivery Time : 8 working days
    • Product Details
    • Company Profile

    Modular Type UPS Battery Backup High Frequency 200 KVA N Series

    LIRUISI Uninterruptible Power Supply Modular UPS N Series 200KVA


    Product introduction:

    LIRUISI's N series three-in, three-out UPS adopts modular design and N+X parallel redundancy technology, and the product capacity covers each power segment between 20kVA and 300kVA, which is convenient for users to flexibly configure and gradually invest. This series of UPS can almost completely solve all power supply problems, such as power failure, mains high voltage, mains low voltage, voltage instantaneous drop, amplitude reduction oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion, clutter interference, frequency fluctuation and other power supplies.


    way of working:

    Three-in, three-out/three-in, single-out, double-conversion online work modular model operation.


    Uninterruptible power supply modular UPSN series 300KVA features and advantages:

    Flexibility: Since each module is independent, the output power can be increased or decreased at any time to meet different load requirements. This makes the UPS system more flexible and able to adapt to different application scenarios.


    Modular high frequency UPS system
    ModelN200KVA
    capacityUPS cabinet20~300kVA
    Power Module20kVA, 25kVA, 30kVA
    Maximum number of modules that can be installed10
    inputInput methodThree-phase four-wire + grounding
    rated voltage380/400V/415Vac
    Voltage range208~478Vac
    Frequency range40~70Hz
    power factor≥0.99
    bypass range380 cap: 25% (optional +10%, +15%, +20%)
    400 cap: 20% (optional +10%, +15%)
    415 upper limit: 15% (optional + 10%)
    Lower limit: -45% (optional -20%, -30%)
    Bypass frequency protection range: ± 10%
    outputOutput methodThree-phase four-wire + grounding
    rated voltage380/400V/415Vac
    power factor0.9 or 1
    voltage accuracy±1%
    Mains mode frequencysynchronization with input; When the mains frequency exceeds the maximum ± by 10% (± 1%, ±2%, ±4%, ±5%), the output frequency is 50× (±0.2%) Hz
    Battery Mode Frequency(50/60±0.2%)Hz
    peak load ratio3:01:00
    Switching timeMains mode to bypass mode: 0ms (tracking); Mains mode to battery mode: 0ms
    overload capacityLoad ≤ 110%, 60min, ≤125%, maintain 10min, ≤150% maintain 1min, ≥150% immediately turn bypass
    Output voltage harmonics≤ 2% (100% linear load)
    efficiencyNormal mode 95%
    batterybattery voltage±192V±204V±216V±228V±240V DC; (Section 32, Section 34, Section 36, Section 38, Section 40 optional)
    weightAppearance sizeCabinet: 1100 x 600 x 2000
    Power module size580 x 443 x131
